Product Description
This new high specification new stainless steel low profile fitting kit allows a complete seat to be fitted with bolts for four main stays and four extra seat stays.
The kit also includes a nylon washer spacer kit to make sure that you have every combination of spacer required to fit a kart seat.
The incredibly flat bolt and washer combination does not destroy you race suit, your rib protector, or your body.
They enable you to tighten the seat bolts without fear of the washer pulling through, as they often do with plastic countersunk washers, or bottoming out as they can do will regular steel washers.
The design of the washer is such that it allows the head of the bolt to twist in the washer which stops the seat from breaking during the twisting forces generated by the chassis.

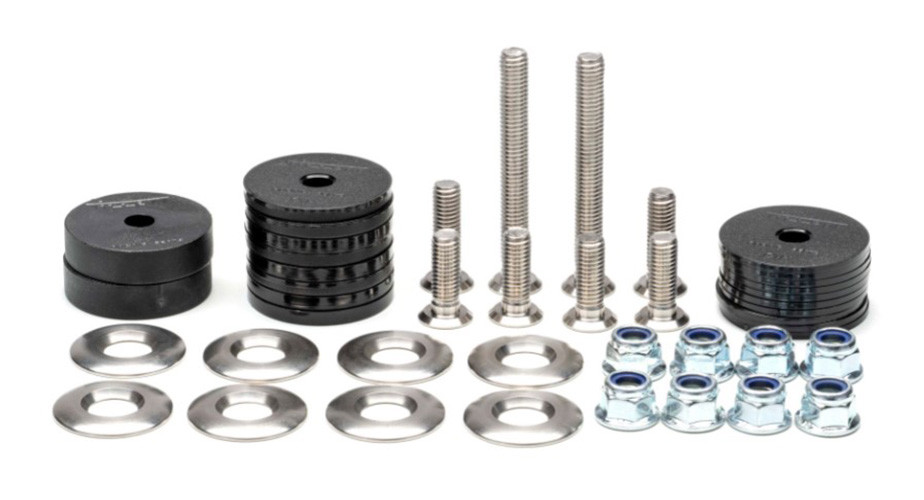

KIT CONTAINS
- 2 x 60mm Stainless low-profile bolts.
- 2 x 30mm Stainless low-profile bolts.
- 4 x 25mm Stainless low-profile bolts.
- 8 x M8 25mm Stainless low-profile washers.
- 8 x M8 flanged Ny-lock nuts.
- 10 x 40mm diameter x 2mm thick Nylon spacer washers.
- 10 x 40mm diameter x 4mm thick Nylon spacer washers.
- 2 x 40mm diameter x 10mm thick Nylon spacer washers.
KEY FEATURES
- Approximate weight 340g.
- Allows a complete seat to be fitted with bolts for four main stays and four extra seat stays.
- Premium fitting kit option due to its ultra-low-profile stainless washers, specially made bolts and comprehensive selection of Nylon spacers.
- Creates far less damage to the rib protector and race suit than regular fittings, negating the highly pressure points.
- More comfortable for the driver as the bolt head sits flat on the seat.
- Special inner domed surface of the contact point in the washer means the head of the bolt can rotate, stopping the seat from fracturing around the mounting points and allowing the seat to flex. Also correcting any alignment inaccuracies of the seat stay tabs.
- Main material: stainless steel.
- Designed and manufactured in the UK.
